Report

Author(s):

• Anastasia Sevastiadou
• Andres Luts
• Audrey Pretot
• Mile Trendafiloski
• Rodrigo Basurto
• Szymon Błaszczyk

To be written once our work has been concluded.

Across the text of our report, multiple abbreviations are about to be used. Table 1 provides a handy summary of all of them and serves as a reference material to whoever is to read through our work.

The following report serves as a summary of all the work done by the 1st appointed team of the Erasmus Project Semester programme at Instituto Superior de Engenharia do Porto in the spring semester of the academic year 2017/2018. The team consisting of six European students worked in the interdisciplinary, multicultural environment, for the whole semester investing their efforts into development of an innovative solution to a problem of the team's preference out of a list presented at the very beginning of the semester.

In the report, the full spectrum of the labour and research is about to be covered, from the introduction to the team, the task and the expectations toward the project, through recognition of the problem's state in the environment and the community at the time of writing, further toward analysis of the issue in the context of multiple different fields - management of work, marketing and media, efficient and sustainable development, and even any concerns of ethics it may rise.

That research being covered, any progress, conflict, or problem made and encountered during the project's development - all of these will be introduced and summarised in order to present the path leading to the final state the project has assumed by the end of the semester.

As an afterword, any and all of the unfulfilled ideas which could contribute to the further development of the project - should that ever happen - will be left for consideration, alongside conclusions drawn by the team and its members from the experience gained during the programme.

As the team, we grant our regards to anyone about to acquaint themselves with our work and would like to thank them for their time and consideration.

Table 2 introduces the members of the team one by one. As a whole, the team - as seen in a group photo i.e. Figure 1 - has at first been assembled as “Team 1” of the EPS program at ISEP, Porto in the academic year 2017/2018. After getting to know each other, the group decided to assume the name “SAMARA”, which consists of the first letter of the name of each of the team's members:

• Szymon
• Audrey
• Mile
• Anastasia
• Rodrigo
• Andres

Table 2: Introduction of the team members

Name	Anastasia Sevastiadou	Andres Luts	Audrey Pretot	Mile Trendafiloski	Rodrigo Basurto	Szymon Błaszczyk	Leon the Chameleon
Nationality	Greek	Estonian	French	Macedonian	Spanish	Polish	Portuguese
Speciality	Environmental and Geotechnical Engineering	Electrical Engineering	Packaging Engineering	Computer Science and Engineering	Mechanical Engineering	Telecommunications and Computer Science	Being awesome
Belbin® role [(Belbin)]	Monitor Evaluator	Resource Investigator	Complete Finisher	Complete Finisher	Implementer	Implementer	Team Mascot
Jonied EPS to…	… to have the opportunity to meet and work with people from all over Europe and get out of my comfort zone	… to get out of my comfort zone and enjoy different culture	… to have a team project with unknown people in foreign langue out of my country, new experience, new challenge, Let's do it!	… to participate in a project in an international environment	… to improve my language skills and my teamwork skills and I found the EPS the best option to do it	… to work on an interesting project unlike these I could participate in at my home university	… to help us develop a great project!

Each of the team's six members comes from a different country and from a variety of fields, different yet complement each other - with a noticeable emphasis put on the electrical aspect of the project, having three members carrying out studies in related fields. As a Belbin® composition, the group carries a small risk of struggling to set itself in motion, with multiple people dedicated to project execution but slightly missing on ideas creation and work coordination. Nevertheless, just as the world is not black and white, the Belbin® roles are not definitive and the SAMARA team carries out its work with good spirits and high morale.

The team chose the topic of “Vertical farming”. This is due to the fact that vertical farming is considered to be the future of farming, eliminating a lot of space and making herbal products easier to access to the average person. In addition, we believe that vertical farming, as well as farming in general, could be simplified through partial automation using modern technologies, so an average person should produce goods with relative ease. Furthermore, the team is well prepared in tackling this task because each member can contribute to this project using their skills in the specific field which they study.

Traditional farming can take up a lot of areas and is very climate specific. This is due to the fact that some crops may grow in one climate but fail to produce the same results in a different one. Also, farming can be a difficult process that requires a lot of money spent on working and maintaining the soil and the plants. Additionally, toxic pesticides are used during the traditional farming process to prevent the crops to decay due to animal factor. While the pesticides are useful in repelling insects and other parasites or vermin animals, they are toxic also to humans and to domestic animals so they should be avoided.

As a team, we believe that an answer to the problem may come with employment of modern technology in the task of automating and standardizing food production. Moving crops to the highly controllable indoor environment should help to reduce resources intake, layered or vertical distribution would minimize the area occupied, and lack of environmental threats may remove the need for use of hazardous substances.

The goal is to create a Vertical farming module that will reduce the space of traditional farming and it will make it easier for the average people to incorporate farming into their daily lives.

We will achieve the goal by making a modular product which will contain several crops inside. It will be aeroponics so that we will eliminate the need for using soil and we will grow the crops using water and fertilizers alone. Additionally, we will create an automated system using electronics so that we will simulate the climate that will be able to grow the specific crop.

Finally, all of the automation will be controlled by an android application so that the user that owns the product will be able to select and monitor which plant is being grown into the specific module.

The solution we are to propose has been appointed a set of requirements to meet in order for it to be positively evaluated:

• Propose a modular solution, as in (one or both):
  • Made of simple, highly compatible independent modules
  • Having highly gradual control over well-separated sections
• Make the design adaptable to different size areas

Following the above, an array of common ground objectives standing before all EPS projects is:

• Restrict our spending to a budget of 100.00 €

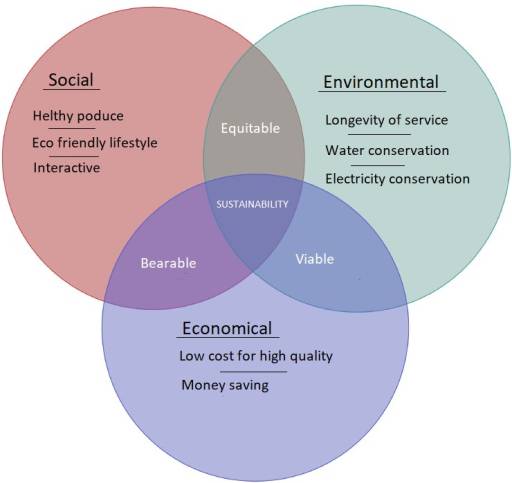

• Use high-sustainability materials and solutions
• Use open source software
• Adopt the International System of Units [(ISU)]
• Comply with the EU rules and regulations:
  • Machine Directive [(MACHINE)]
  • Electromagnetic Compatibility Directive [(EMC)]
  • Low Voltage Directive [(LVD)]
  • Radio Equipment Directive [(RED)]
  • Restriction of Hazardous Substances (ROHS) in Electrical and Electronic Equipment Directive [(ROHS)]

For the project to be evaluated technically, expectations for its performance have to be set well in advance. Moreover, the prototype's first run obviously cannot take place during the final presentation - and so functional tests will have to be carried out.

Working with living organisms - either animals or plans - is always complicated. These cannot be taken apart and separately tried out under different aspects and in different fields. For a plant to grow its environment has to support its development as a whole. Nevertheless, some basic principles of operation for maintaining this environment can be predicted - and so our device should:

• Provide water and nutrition, in appropriate amounts and at appropriate intervals
• Provide lightning, of appropriate intensity and at the appropriate time of the day
• Offer space for the roots and the shoot of the plant to grow and develop

Besides that, the products should offer certain functionalities to its users, therefore being able to:

• Fall silent and turn off the lights at the nighttime, preferably defined by the user, not to disturb the owner with its operation
• Offer reminders about any maintenance operations necessary to keep it operational

Further, as an appliance connected to the electricity mains, the prototype should:

• Be properly grounded, not to risk electroshocking the user
• Keep the electric components safe from any moisture

Finally, an integrated test simulating real-life performance shall be carried - supporting an actual plant living in our device for an extended period of time.

Having our work unorganized could easily lead to a major workflow crisis - some tasks could be left unattended while others would have too many people focusing on them at once. In order to avoid such situations, a division of tasks to be performed throughout the project has been conducted, its results being summarised in Table 3.

This report is separated into eight chapters, each associated with a distinctive field of our research and work. Table 4 outlines the underlying purpose of each section.

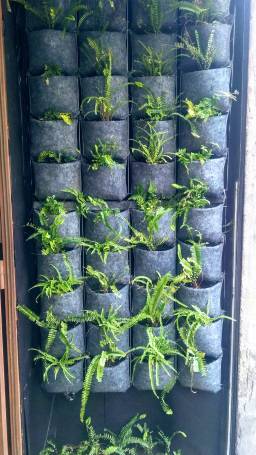

Just like for the past decades edible plants and fragrant herbs could have been found both on immense fields attended by an army of workers and in handcrafted backyard gardens, the revolution of vertical farming comes in different sizes - from gigantic and complex systems filling up whole workshops and suitable for commercial application, through school-sized glasshouse DYI projects helping to plant healthy lifestyle in pupils' heads, up to household-sized solutions treated as personal investment into one's health and well-being.

Extensive research which would cover all the aforementioned spectrum of cases and applications would be overly time-consuming. The team decided therefore in advance to focus on just a single branch of these devices' development. Once a whole array of factors - limited budget, set of skills at hand, room for creative freedom, target group, personal preferences of the team members, and others - have been discussed, the team SAMARA decided to put its efforts into a project able to cover needs of a single family or a small, well defined community - like a class of students, start-up company or neighbours sharing the same staircase.

Among arguments in favour of this approach were given:

• Small scale more suitable for limited budget of ours
• Use case giving huge odds for the device to be placed indoors, in a steady and safe environment
• More familiar and easier to reproduce marketing process addressing individuals, not huge businesses or city authorities
• Greater creative freedom for innovative functionalities, when compared to industrial-grade solutions focused mainly on efficiency

That being established, the following chapter is about to cover our research in the field of private-use indoor farming solutions currently available on the customer market.

With an overview of the current market situation we have noticed a major niche looming in the field of small-scale self-sustainable indoor farms - namely, none of the highly automated solutions comes as a scalable, expandable system.

Minigarden Vertical's modularity described in Section 2.3.1, one that helps it adapt to various spaces and applications, comes at a price of low independence. For the plants to thrive the system has to have access to direct sunlight - or be placed in an otherwise illuminated area. Without any subsidiary investments, the watering process would call for approaching every single plant with a watering can. Even with an irrigation set installed the plants won't be supplied with water without human interaction, unless one comes up with a DIY extension connecting Minigarden to the mains. To some potential buyers, the amount of labour this system is calling for may simply be repelling.

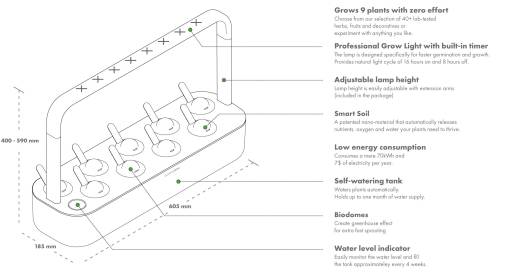

On the other hand, highly automated solutions like Click & Grow's Smart Garden from Section 2.3.2.1 or ZipGrow's FarmWall from Section 2.3.3 are offered at a relatively high selling point - what might be understandable having that they are almost “self-aware” smart devices - but at the very moment of purchase bound the customer with their limited capacity. If a person buys themselves a Smart Garden 3 unit in order to try out the idea of self-grown herbs and gets involved in it, there is no simple solution to increase the “farming area” available. A problem arises - whether to buy another small device and use both or upgrade to a bigger model, but try to place the predecessor on a second-hand market? Another answer would obviously be over-investing into a higher capacity-to-price-ratio device in the first place - but then again, not many will be willing to allocate their resources in an experimental purchase.

Considering all of the above, the ideal solution appears to be a smart - possibly IoT enabled - device one can expand at least to a certain extent with time, alongside growing interest in the idea of indoor vertical farming. That is a niche in the market we as a team could try to claim to introduce our product.

Soil indoor (drip system) is a method of growing plants in soil and nutrients solution is already added to soil, for plant whole lifespan[(clarkin)]. The soil was not an option because it is too frugal. That did not fit with our vision of the creation of a mobile app that would allow the user to control and monitor their indoor garden - too many variables could be taken into consideration. Also, this traditional approach was not innovative enough.

Hydroponics is a method of growing plants without soil, using mineral nutrient solutions in a water solvent[(clarkin)]. Plant roots are in water constantly. Hydroponics was the initial to-go technology because of the wide availability of related texts and materials, and due to relatively low costs of implementation. However, we had problems proposing a solution that would keep hydroponics modular in an easy to operate way. But the decisive part for us was that we wanted more complex system.

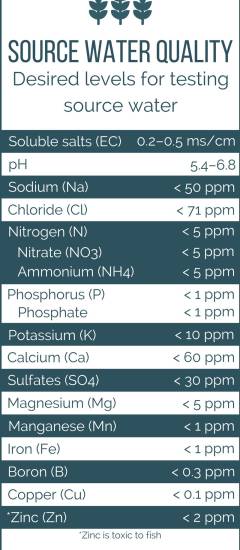

Aquaponics refers to any system that combines conventional aquaculture (raising aquatic animals) in a symbiotic environment. Excretions from animals are being used as nutrients. [(clarkin)] Plant roots are in water constantly. This type of indoor farm had already been done in past years of the EPS@ISEP programme, and so we did not want to take the same path.

Aeroponics is the process of growing plants in an air or mist environment without the use of soil or an aggregate. [(clarkin)] Seems like a way to go for future, its most water efficient, the fastest growth rate for the plant. [(aeroDIY)] Suitable for a big variety of different plants. For example, misting for Romaine salad lasts for 6 seconds every 4 minutes. For us, it seemed like the most perspective way to go ever since week 2, yet for weeks to follow we had struggled to put together a budget proposal that would include all the components necessary - and so as a team we have fallen back to the hydroponic technology. Iteration after iteration, our budget plan became more and more sustainable, up to the point at which the aeroponic solution became possible again and is going to be implemented in our prototype device.

The aeroponics techniques can be further sub-divided into two distinct branches from the point of view of the pressure created inside the water delivery installation. High-Pressure Aeroponics (HPA) and Low-Pressure Aeroponics (LPA) systems are distinguished. In the former, water is kept inside an air-tight installation and circulated under high-pressure - often up to 100 PSI [(hydroguy)]. It is so in order to create a microscopic-sized mist that is used for watering the roots of the plants inhabiting the system. This technique has an array of upsides, including high oxidation levels of the mist, high efficiency of pump-to-plants ratio, and a possibility to eliminate the need of recollecting the water should all of the unused mist evaporate right after distribution [(eaeroponics)]. Yet these advantages do not come without a cost - HPA systems are prone to dangerous leaks due to the pressure they create, when applied in the household may prove to be disturbingly noisy, and their misting sprayers can clog easily having microscopic holes diameter [(hydroguy)], [(eaeroponics)]. Above all, however, HPA system could prove too complicated in implementation for our limited budget and minimal experience in the field. LPA solutions, including prototype-tier DIY variants, can be found across the internet easily, providing us with a lot of material to consider. Although LPA farmed plants may not grow as rapidly as HPA treated ones [(hydroguy)], the former is still highly effective and combined with simple implementation proves to be the appropriate technology to use in our device's prototype implementation - even if the market viable model would be to utilize HPA.

In the aeroponics kind of farming, plant seeds, cuttings or saplings are put in netted cup suspended in a growing room, nutrient-laden water is supplied in mist type supplying nutrients for germination and crops to grow. Even though there is a limitation for a number of kinds of plants to develop, a grower has every opportunity to research in growing more forms of crops. Some types of plants that are being cultivated successfully are as follows. [(agrifarming)]

• Vegetable plants: cauliflower, cabbage, broccoli, beans, tomatoes, cucumbers, gourds, potatoes, beets, carrots, eggplants, peppers, corn, salad and much more. [(agrifarming)]
• Fruit plants: melons and strawberries. [(agrifarming)]
• Herbs: mint, skullcap, nettles, ginger, dill, spring onion, basil, chervil, chives. [(agrifarming)] [(illinois)]

Instead of growing your plant from a seed, there is an option to take cuttings and root them in fine mist-thus. Freeing you up from the regular expense of buying seeds and also saves a lot of time by skipping growth phases. [(agrifarming)]

Cloning itself needs a lot of skill and knowledge. The environment has to be kept constantly at 18-21 degrees and relative humidity around 60% or more. The temperature control is a very major factor, over the temperature fungus starts to develop and grow rapidly. [(just4growers)]

Cuttings don’t require much light, because the goal is for them to grow roots instead of growing the plant itself but some are still needed. Also in this stage, direct sunlight should be avoided. Thermometer and live feedback are very useful, to not overheat the water. [(just4growers)] [(agrifarming)]

Based on the research done by the team on the topic of State of the Art, the team decided that the product should:

• Be modular and easy to use
• Use aeroponics/hydroponics
• Use some electronics that will monitor the plants' status
• Incorporate some form of automatization of growing the plants
• Use a mobile application for simple and effective use

We believe that by following these points we will create a product that will have a high market value and will be a strong competitor in the market and contribute highly to the future of vertical farming.

As we see in Figure 12, our team made a waterfall approach to the product. This is because, when working with embedded systems and mechanical elements, some components of the system are dependant on one another, making agile approaches difficult to manage. More information about the approach is seen in Figure 13.

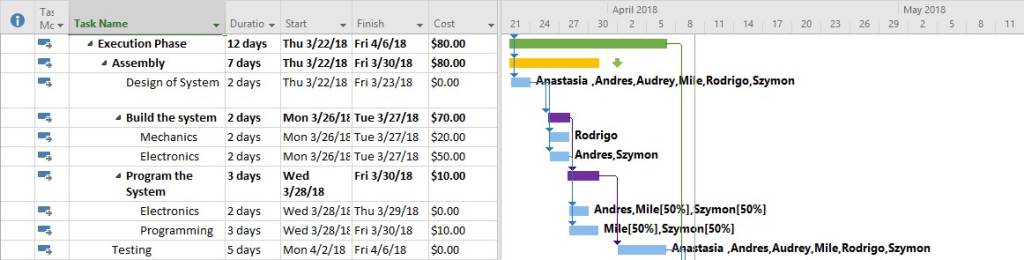

Table 9 represents the deadlines and the deliverables that were imposed on our project by the ISEP supervisors.

Another very important aspect of the Project Management phase is the cost distribution. Each resource can be a work resource or a material resource and has its own cost. The project manager has the obligation to allocate the work and material resources to be cost-effective. Table 10 and Figure 14 show the costs distributed on the work resources.

Table 10: Work resources

Name	Cost
Anastasia	3234.80 €
Andres	3697.50 €
Audrey	3485.50 €
Mile	3592.00 €
Rodrigo	3527.50 €
Szymon	3615.50 €
Total	21152.80 €

As seen above, the work resources are equally distributed among the members of the team. Material resources are things that are not working for the product but are used to create and build the resource. The project manager had to distribute 100 € for the resources. Table 11 shows the material resources used to build the project.

As seen above, the material resources cost is just at the limit of 100 €, which means that the team has succeeded in optymising the selection of materials and planing the cost-to-functionalities ration.

Quality is an important aspect of a project that strives to meet the needs of the customers. The team and the project manager should always strive to improve the quality of the product that will increase the market value of the product.

• Product quality Our customers need to be satisfied with every product that we provide. We strive to accomplish this by designing the product as per the customer's needs and test every functionality extensively so that our product works as intended.
• Usage quality The product needs to be easy to use and set up for every customer. Our team designed the product so that the customer needs to have minimal interaction with the farm and we will inform the customer about what to do.
• service quality There is a dedicated administrator section of our product that constantly updates the existing plants and adds new plants that are available to grow. Additionally, there is a 24/7 support team in case any customer has any questions.

One of the most important aspects of Project Management is allocating tasks to people. This is done because each team member knows what to do at any given moment and it is easier to synchronize with the other team members because everyone knows who is responsible for the task. Additionally, if anything fails, the project manager can find out who is responsible for the failure and should act accordingly. Table 12 presents the allocated tasks and the people that are responsible and involved in them.

An essential asset of a good working team is having good communication between the members of that team. The project manager needs to establish a good communication channel that is accepted by every team member. Below you can see the table and figure about the communication used in the team.

Table 13: Communication Table

Medium	Percentage
WhatsApp	30%
Facebook	20%
Oral	45%
Other(E-mail, Google Drive, etc)	5%

As seen from Figure 15 and Table 13 mostly, the team communicated orally, using WhatsApp and Facebook group to schedule meetings. The team also uses Google Drive and e-mails to share materials with each other. Table 14 shows a detailed overview of the communication between the members of the team.

The team has thought about the risks involved in the process of developing and maintaining the product. To combat this problem and for a general overview of the risks involved in the project, the team set up a table as seen below in Table 15.

Procurement is the action of acquiring and buying equipment and supplies for our products. This is a very important part of building our product and any product in any business because without the proper equipment and materials there will not be any stable product.

Our team had a budget of 100€ for all the supplies to be used to build our product. This is why our team had planned the budget carefully and after that, selectively chose which local providers to be contacted in order to gain the supplies needed to build our product. There was a language barrier regarding the local providers because we could only choose Portuguese local providers, but our team managed to get everything that was needed.

Stakeholders are people, groups or organizations that have interests and influences in the product. It is very important in a business to manage the stakeholders properly because stakeholders can affect and be affected by the product in some way. Table 16 shows the stakeholders and their interest and power and Figure 16 shows the graphical representation of the table.

As a conclusion, for the project to be successful, it has to be managed thoroughly and strategically. That does not only include management of people but even more: risk, quality, cost and stakeholders. The essentials to succeed in the project management is to keep up with the principles. It is a key part of the project, with great impact on whether or not the project will succeed or not. This study allowed the team to define specific criteria and also succeed with most optimal management solution. Unfortunately, there has been some unforeseen circumstances and delays regarding the materials cost but the team managed to push through the obstacles and deliver the product with very high quality.

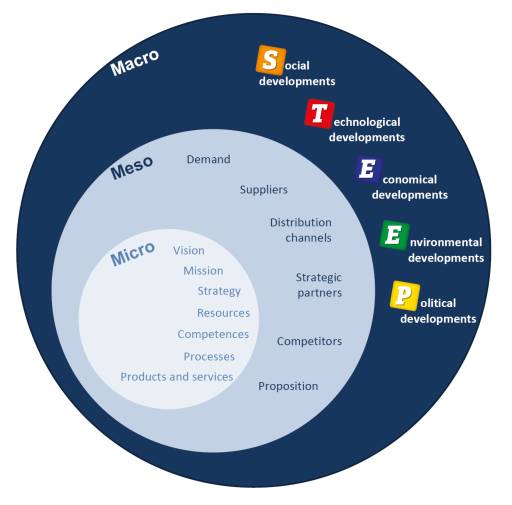

First of all, the macro-environment is the view on the market in the worldwide scale. That means all the factors that we are not able to manage but which will influence our product and affect the performance and the decisions of the team. All these uncontrollable factors are gathered by the PESTEL analysis presented in Figure 20.

Is how the product interacts with the law in the target countries.

Opportunities:

• Our compliance with the environmental ethic. To be irreproachable on the recyclable part and in agreement with environmental legislation of the European Union, all the used materials will be recyclable. That contributes to reducing consumption of energy and new raw materials and production of greenhouse gases, air and water pollution. Moreover, our product will have a high expected lifetime.

Threats:

• Nothing relevant, because there are no laws against the self-grown food, neither any taxes are applied.

Is the influence of the consumer quality of life.

Opportunities:

• Even though the price of our product can be a threat, the price of bio-vegetables can be an opportunity to promote the “own growing”.

Threats:

• Indeed, the incomes are really different across Europe (e.g. Greece and Switzerland) so the sale price will differ accordingly from country to country. Moreover, the different incomes of the different social economic classes can be a threat to the sales of our product.
• The cost of electricity can increase and, as our product isn’t autonomously powered, discourage customers from buying if the energy becomes too expensive.

Represent for our product the opportunity of the biological and healthy trend.

Opportunities:

• Currently, more and more people live in cities (rural exodus), meaning fewer and fewer places are designated to a garden, and the food is less and less biological, which means less and less healthy. Nowadays, customers feel more involved and touched by ethics, sustainability, biology, recyclability, pollution, etc. and a vertical farm can provide an answer to these needs;
• More and more people are affected by the recyclability and the sustainability of products, with your own plant there is no need to drive to the supermarket (less gas used), no package thrown in the trash, no toxic products used to grow your plants, more involvement in the earth protection with benefit for your lifestyle.

Threats:

• Nothing relevant

Involve all the technologies which can impact our product.

Opportunities:

• More and more people are connected to social media and disconnected from mother nature. In this way, to turn this threat into an opportunity we have decided to create an application available on a smartphone connected with our vertical farm.

Threats:

• Nothing relevant because the technological gap between western countries doesn't really exist anymore

The most important one for our project because of our choice to be sustainable.

Opportunities:

• No wastes will be produced and our product will use an aeroponic system which uses less water than soil farm, that responds to the need for saving pure water.
• In some countries without a lot of sunshine and with harsh temperature, the weather can become an opportunity for our application, allowing growth of some plants that normally do not grow in that climate.
• The electricity is more and more reap in sustainable ways, like with water turbines, wind turbines and the photovoltaic panels. So our only need resource is now “renewable”.

Threats:

• The weather can be a threat in some countries where it is really easy to grow a lot of kinds of plants, with a lot of sunny days, reducing the need for our product.

The microenvironment is the actual market from the company point of view i.e. all the actors in an immediate area of operations that influence the performance and decisions of the team. These actors can be analyzed by the 5 PORTER's forces analysis presented in Figure 21.

CUSTOMERS and more exactly the “power of clients”, the pressure they can exert over the market. On the vertical farming market, the pressure from customers comes from their trends. That means if the trend of bio-products change, our product can become old-fashioned even if it is useful. On the other hand, that also means growing your plants can become a real way of life as well. All these factors can influence the price of our product through the sales, that’s why we need to create and hold the desire to have one's own indoor garden. With advertising, innovation and development/update of our application, and of course highlight the benefits of “Vereatable”. Currently, the number of urban dwellers wanting biological food at a low price is increasing - what decreases their negotiating power. Moreover, our vertical garden will solve the problem of the place and time requirements - place because it saves horizontal area by stretching vertically, and time because it is autonomous and connected with an application, that will increase again the number of our possible customers, so decrease their negotiating power.

SUPPLIERS' power is about all the materials we need but we cannot produce. In fact, having several suppliers can solve some problems but is not good enough because in some fields they are only a few suppliers. Currently, suppliers can have a deal between themselves, a collaboration agreement. If suppliers are organized, they are controlling the market and playing with the rivalry between them becomes impossible. Actually, our suppliers are electrical component manufacturers and raw material providers (wood, metals, etc.) - both have multiple representatives on the market, so their negotiating power is limited.

THREAT OF NEW ENTRANTS in the vertical farming market is significant because of the increasing demand. Indeed as we said before people are more and more concerned by biological food, sustainability, recyclability, no waste, environment, etc. and as people are more and more rural the vertical farming is the solution. The market is currently in a boom for only a few years that’s why it is possible to make a way for us yet.

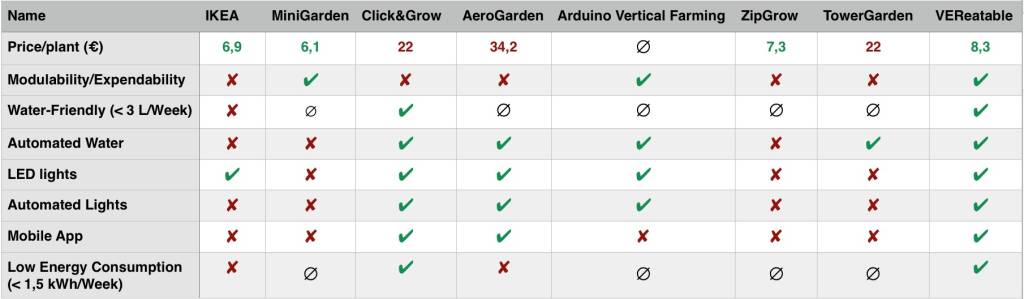

RIVALRY IN THE INDUSTRY (ie. state of the art) of vertical farming Figure 22 shows a parallel between Vereatable and our main rivals

In the current market, our product stands out from the competition by the smartphone connectivity with an application, the light automated and movable system and the water aeroponic system with automated distribution. The price is suitable for all the functions fulfilled and the size is good for the number of possible plants inside. We can get to the market with some way of pressure on the rivalry.

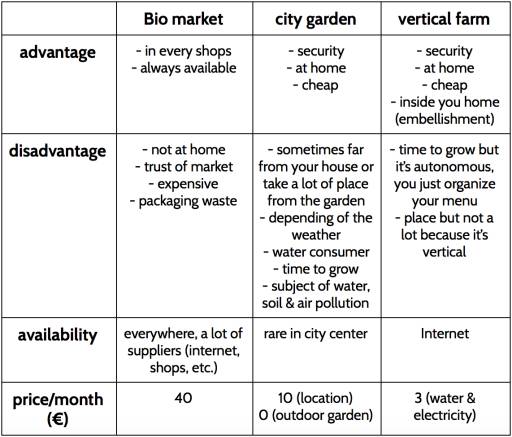

THREATS OF SUBSTITUTES GOODS Figure 23 show a paralel between our vertical farm and substitutes goods.

Finally, the solution of a vertical farm is: cheaper, easier access and the security of bio food is better than the supermarket. In comparison to regular garden, vertical farm is not time-consuming because it takes place directly at home and has an autonomous system of lightning and water supply. The vertical farming is a great option for nature lovers and environmentally concerned individuals living in a city.

Negatives and positives points are about the objective Internal points are about the team and our product External points are about our environment

The SWOT analysis presented in Figure 24 allows us to be conscious of our team weaknesses and help us work through them. Weaknesses and strengths are internal issues of the team, that's why we must use our strengths to balance our weaknesses.

This analysis helps us to have a large point of view of the environment's threats and opportunities, what is possible and what is risky or complicated. To see where our opportunities are and take advantage of them to the fullest. By doing that we want to create a name for ourselves in the market.

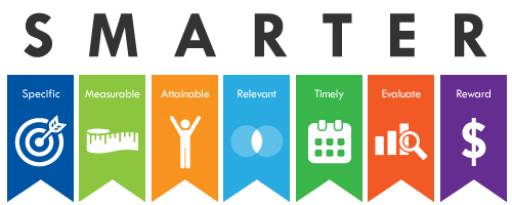

The SMART method pictured in Figure 25 is the way to define and explain exactly your objectives in order to make it easier and successful. Over time SMART evolved in SMARTER to define always better your goals for being feasible.

Specific & Simple: The goal must be easy, clear, exact and understandable easily by everyone. If it is not the case, we must decompose it in several shorters. Our main objective is to be competitive in the vertical farming market. Not really specific objective, that is why we can decompose it (ie. project planning)

• Analyses what is a vertical farm and the needs characteristics to fulfil them and build a real vertical farm. In our case water and light distribution and take less place as possible for as much as possible of plants.
• Analyse perfectly the rivalry on the actual market to be competitive on the market. What added value can we create ? in our case the smartphone application and the aeroponic system
• Define our target customers. Rural and hurry people wanted a garden but without have the time to work in. Nature lovers, biological and health affected and connected users.
• Define how to answer to this clients. with an autonomous system linked by a smartphone application and growing plants at home without toxic product. A decorative way to eat healthily.

Measurable: It is said that a measurable goal can be quantified or qualified, to define if the objective is complete or not with simple calculate/measure.

• Electric power use/week ( less than 4 kWh for 9 plants)
• Quantity of water use/week (less than 2L for 9 plants)
• Can connect more than 4 modules together
• Win 3% of vertical farm market share
• Create a long-life system (more than 10 years)

Attainable: You must find a goal that is big enough to be daring, challenging, and motivating. But it must be small enough to remain attainable and attainable.

• aeroponic system so few water consumption (Electrical Engineer)
• sustainable materials (Packaging and Environmental Engineer)
• smartphone application (Telecommunications and Computer Science Engineer)
• few electrical power consumption (Electrical Engineer)

Relevant: Nowadays we find a way to encourage people to save place, eat biological and healthy with only few water and electricity is a real challenge but a relevant one.

Timely: In the context of EPS program, we have deadlines to respect (ie. Gantt chart). That is why our first real model will be ready and operational at the end of June.

• Date of actual market research’ end
• Date of marketing/ethic/sustainability research’s end
• Define the technologic model/system
• Define the design
• Beginning of production

Evaluate: In this kind of big project, it is necessary to evaluate your progress and quality after each task. Only because if you missed a mistake makes at the beginning you can spoil all your project. For example, our team must create an aeroponic system, but before to do that we must test all the received components. After all, components are truly good we can build the system who will be tested before to put it into the “box” and tested on plants. We will do the same for the smartphone application, we must test it after each forward steps.

Reward: This final step consists to reconsider your objectives, take a different point of view, being critical to see a possible another way. For example at the beginning our team wanted to create an aquaponic system, this way was really complicated and not in the “theme” vertical farming. So we just change the system for another also autonomous but easier. Then the system chose was hydroponic, already much present on the market and more expensive for us, so finally we change the aeroponic system.

Segmentation is the action of dividing a population into homogeneous groups detailed in Figure 26 according to different criteria. This is known as market segmentation or customer segmentation depending on the context. It makes it possible to create differentiated marketing actions as functions of the segments and to possibly propose a product offer specific to each segment while taking care to avoid possible segment conflicts. It is also possible to choose to address only one market segment, that is our case.

As we can see on the diagram Figure 27 Europe are the biggest fruits and vegetables, eaters.

North of Europe: Vereatable is created to answer to this country with sometimes a cold weather, without a lot of sun per years. With our product, their garden will be indoor and the light will be controlled by a captor and LED automatized if during the day plants did not have enough sun.

South of Europe: In theses country plants needs a lot of water, thanks to our aeroponic system this quantity can be reduced. In this kind of country they is a lot of sunlight, maybe we will develop a Vereatable with the LED system.

Moreover, with Vereatable, no more need for soil and a lot of space neither, it will be very useful for big cities.

Life situation of our target customers:

Gender: Men & Women

Age: 24-50

Family situation: Single / Couple / With children

Occupation: Workers

Interest: Health food & Nature

Income: Average or High

The biological market boom increase the fruit & vegetable price everywhere in the world. All the usual biological food consumers can be easily attracted by Vereatable because of the small price, and the fact that our product is really autonomous. Moreover, no matter if you are a busy worker and if you do not have enough time to give to your garden, Vereatable is totally autonomous without use a lot of electricity. Our product allows you to have a veritable indoor garden, you can educate your children to grow fruits and vegetables, and most importantly to eat healthily. If you are a connected person you have a smartphone application where you can control light water and know what you grow, where and since when.

Our psychologic target is people feeling concerned about sustainability & renewable energy because our product has been done to consume as less as possible electric power and water. They are environmental & nature lovers to buy a recyclable product with long-life term product. Have a vertical garden at home enable you to reduce your wastes because you will not buy any more fruits and vegetable in a supermarket. Our product is for rural lovers who have to live in the city for their work. They can have a little garden indoor even if they do not have a lot of space. Our consumers will be biological food eaters.

A brand is defined by its identity (Vereatable), its market (vertical farming) and its public(target customers). All this aspect of a brand contributes to establishing the strategy to adopt. Figure 28 shows the brand triangle created by these three main definitions.

Distinguish yourself from the others brands is really important to have a room in the market and most important in the people/clients mind. That is why our team chose a really important name with a lot of significations and simplicity in the icon showed on Figure 29.

The “Vereatable” name is a pun for veritable which mean truly, really. For our team, that means transparency, sincerity and something real without bad surprises. Eatable, because of the food, biological and healthy that you can grow with your vertical garden. And the whole word means very eatable, food truly eatable, truly healthy and good for you and your family.

We wanted to make out “VER” for two reasons: - VER is the beginning of vertical for a vertical garden and - VER(T) in french mean green

The bands on the top of “eatable” are for the modularity of our product, because you can gather several modules to have a really big vertical garden. And because of the connection with our smartphone application.

Finally “indoor garden” because it will be your own little garden, where you can grow your fruits, vegetables, plants or flower, whatever you want, at home. A truly decorative inside garden.

4P: The 4P model is the first one but also the less specific. This model gives us a vague idea about our product.

• Product: Vertical farming, autonomous system of distribution (water, light), smartphone connected, low consumption of water and electricity power.
• Place: garden and vegetal shops, e-market (Amazon, eBay, official website)
• Promotion: flyers and leaflet in the vegetal shops, word of mouth, social media, press-paper
• Price: 50-75 €

4C: The 4C model is more specific than the 4P. Because this model gives us more explanation, it pushes our team to ask the good questions, and give some rights answers.

• Customer need:

- Vertical farming: to allow urban people to have a real garden indoor. A vertical farm saves more place than a simple garden, moreover, you can put your vertical garden indoor so it is not sudden the weather. The most important is that the food you will grow with Vereatable will be biological without toxical products. No more excuses to eat healthily, not it will not be expensive and far neither because it will be at home just next to you.

- Autonomous system of distribution (water, light): As we know our target customers are urban and hurried workers. That is why our product will be totally autonomous with some captor this system is possible. Your plants' needs will be fulfilled perfectly. Water needs thanks to an aeroponic system and light needs thanks to a LED. The only thing you will have to do is to come and harvest your food.

- Few consumption of water and electricity power: The word “garden” has something ecological inside. That is the reason why we wanted our product as much as possible respectful of the environment. Thanks to the aeroponic system your plants will not consume a lot of water, so less than a traditional farm. And thanks to the automatic light LED system, these LED will be turned on only when it is necessary for your plants, and as we know LEDs do not consume a lot of electricity. Moreover, the materials we chose for the outside “box” is really resistant (long-life term) and recyclable. smartphone connected

• Convenience of Buying:

Our product will be available everywhere where nature lovers can find it. You want a Vereatable indoor garden? you can have it easily. You can search on the internet, directly on our website or Amazon, eBay, etc. or if want to see our product you can go to your garden shop.

• Communication:

As we are a new brand the communication is really important. At the beginning make some '“sales” can be effective. Fulfil a customer book to send e-mails with advantages or newsletters. Vereatable is a real quality product so the word of mouth will participate in our promotion. With our smartphone application we want to touch the connected generations so launch advertising on social media as facebook, twitter, Pinterest and Instagram is a really big part of our communication because it is here we will touch our biggest part of possible clients. And finally the press-paper like a newspaper, magazines, flyer in the streets, and leafleter in shops.

• Cost to satisfy:

Eat biological and healthy is an everyday concern. That is the reason we do not make a lot of money, the reason why our product is not really expensive, around the cost price for us. Moreover, the consumption of electricity is really low.

4E: Now that our target public is defined we must think about how can we touch them?

• Emotion: pride of own biological production, no more guilty about the environment
• Experience: urban farming, biological and homemade
• Exclusivity: modulation of the size, adaptable for each kind of plant
• Engagement: simplicity, efficiency & ecological

To be competitive in a new market we must be present in the media to catch the attention of our possible customers, we must communicate with them. The advertising part is really important to make people know about our brand and our product, to share our values.

why old and young people touched on media

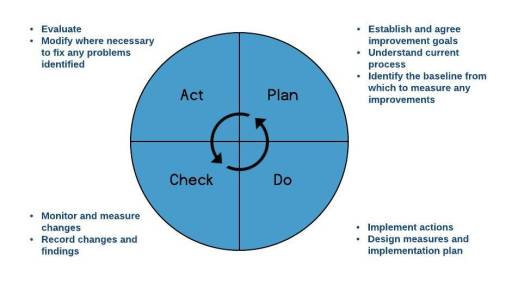

The PDCA method by Deming presented in Figure 31 is a continuous control & check at each step of a project from the development to the building. That permit to the team to point any small that can become huge and adjust our actual method to a new one more efficient.

Plan: The first thing to do is planning actions and expectations, the objectives to achieve and if it’s required how to improve it. It is necessary to think about a possible problem that can arise. Test it and develop a potential issue to fix it.

Do & Develop: The second thing to do is implementing all the previous actions and make them (results are collected during this phase). Then, building a process to reach our measured goals.

Check & Control: After each a step/action, we need to study the results and compare them to the set objective. Testing is the only secure way for stepping forward with a solid base, without any doubts. It is important to know if each step of building is in order. Then two options are possible if results suit our expectations our not.

Act & Adjust: If the resulting suit to our expectation, implement this circle in the following action. If the result is out of our acceptable area, acting is the solution. Change the expectations, modify the method. Identify and fix the problem with modification if it is necessary

To conclude this study, we can say the market environment of vertical farming and our place inside it has been well studied. The studying of macro-environment allows us to be aware of all the aspect that affects the team as opportunities or as threats. Studying the micro-environment allow us to be conscious of our direct rivals (competitors & submits goods) and the power of suppliers and customers. That was useful to build a complete SWOT analysis to resume our positives and negative point from the point of view of the environment and the team/product. This analysis helps us to have a large point of view of the environment's threats and opportunities, what is possible and what is risky or complicated. To see where our opportunities are and take advantage of them to the fullest.

Next step was to define our objectives, a strategy to enter the actual market. So we used the SMARTER analysis perfectly. Then, we segmented the target population to create differentiated marketing actions/communication as functions of the specific ​segments.

Finally, we were able to position our brand image in the market and define our target customers. Indeed, an autonomous lights and water distribution system allows us to touch workers, the smartphone application allow us to touch the connected generation (25-50 years old), the aeroponic and LED system allows us to touch environmental lovers because of the few resources needed and globally the vertical garden is the whole community of biological, healthy food user (or just flower) but living in city without place and time neither to grow it.

During this part, we talked about ecology and sustainability because vertical farm/garden is a solution face to current ​agriculture ​. These two words mean a lot to our team, we fell concerned about them, this is the reason why we wanted our product ​to be really respectful ​to the environment ​to the best of our capacity. The next part will explain that.

Current agricultural systems are not as effective or sustainable as they should or could be. Vertical agriculture is a promising solution to the disadvantages of traditional agriculture. Compared to traditional farming, vertical crops use 70 to 95 per cent less water and over 90 per cent less land and harvest 80 per cent more per unit area. The Vertical Farming Association, a two-year, nonprofit organization focused on promoting the industry, says vertical farming allows people to produce crops throughout the year because all environmental factors are controlled. It produces healthier and higher yields faster than traditional agriculture and is resistant to climate change. In addition, as the world's population becomes more urbanized, vertical farms can help meet the growing demand for fresh local produce. [(VF)] [(ISO)]

Sustainable economy by general definition is the one that does not use natural sources more quickly than nature can replenish. A sustainable economy is built, in our opinion, based on ethical values, innovation, investment and sound financial bases, using available resources to make better use of us. The aim is to use these resources in a way that is efficient, responsible and can yield long-term benefits as well as continuous profit. Sustainability principles, centred on the environment and society, are a strategic factor for economic growth and maximum but also long-term corporate performance. We came to the conclusion that Sustainability is not limited to spending cuts. In the first years, the sustainability principles do not bring profit for companies as they are called upon to invest funds for their implementation throughout their financial cycle. It is not an automatic process, but an investment and only the companies that adapt to the principles of sustainable development will stay in time. [(VF)] [(ISO)]

• Physical capital (natural resources)
• Human capital (including skills and motivation)
• Social capital (social networks, trust, social standards)
• Technological capital (tools, technology, machinery, buildings, infrastructure)
• The financial capital (the production power of the other four types of capital)

Although Social sustainability is an often overlooked aspect of sustainability, is extremely crucial if you want to attain the most sustainable outcome possible. ISO 26000, the Guiding Pattern for Social Responsibility, is probably the most comprehensive tool that can help businesses integrate the principles of social responsibility into everyday business ventures. It should be clear that there is no single guide to applying the principles of Social Responsibility that can be used in every business. The issue is, unfortunately, more complex and the details of the implementation of the basic principles of viability depend on the type of business and the place where it operates. The basic pillars of the standard are clearly explained within the model itself: [(VF)] [(ISO)]

• Human rights
• Work practices
• Fair business practices
• Consumer issues
• Social participation and social development

Life Cycle Analysis (LCA) is a set of research tools for assessing all the environmental impacts associated with the entire lifecycle of a product. The objective of the life cycle analysis is to seek and quantify the environmental degradation resulting from the production of a product or a production process. This is possible through monitoring the product from its “birth” to “burial”, from the extraction of raw materials, production, use up to its final disposal. Through this process, it is possible to identify those activities that cause the most serious environmental burdens. Producers can, therefore, focus on specific sectors to reduce or even minimize pressures on the environment from their production processes. [(VF)] [(ISO)]

Materials

The team wanted to use, for the main structure, MDF panels and recyclable food-safe PVC. Both materials would be produced and purchased in Portugal, in order to reduce the way of transportation. MDF and PVC are recyclable resources and therefore our first choice.

Manufacturing

During the manufacturing, the biggest part of the construction will be performed by machines, The electrical part will be assembled in the manufacture, as this would be too difficult and too time-consuming for most of the clients. The factory needed to be sustainable during the construction of the product. The waste in the factory needed to be as little as possible. This not only saved money but allowed the production of the product to be as environmentally responsible as possible. When there were cutoffs of plastic, these would be melted back down and used back in the mmanufacturing process. During the manufacturing, Vareatable has to make sure that the least amount of product goes to waste. Every year a sustainability report would be completed, to see where the company had done well, and where it needed to improve. This sustainability report would provide a year on year progress report and the company would be able to see gradual improvements over time.

Distribution

The Team used materials from local providers in Portugal. For packaging, the product would be sent to the customers assembled, and with easy instructions on how to connect multiple compartments in case a customer wants to increase the number of plants he wants to grow.

Use

The Vereatable, indoor garden is for home use. It can be used for the growth of plants, vegetables, herbs even flowers. It has an autonomous water and light system with components working with sensors, to save energy. The components turning on and off at different times depending on the plant's needs. All the customer has to do is to choose the of his choice through our mobiles application database and refill the water compartment when it's needed.

End of Life

After the end of useful life of Vereatable, the product can be recycled. Design for disassembly made it easy to break apart and reuse or recycle the different components. Electronics and precious metals inside could be picked out to use again.

To conclude this chapter, after penalizing the three areas of the sustainability report, Environmental, the Economic and the Social areas, the team chose to use environmentally friendly materials, and produce a re-usable indoor vertical farming. It was very important for the team to make a product that is respectful to the environment by not only during the manufacture but only during its life course. With Vereatable, the indoor garden we provide an eco-friendly solution and a greener way of life.

Ethics and deontological concerns are an important pillar of any company's core. These principles play a big role in the way a company works but also in its public image. The Ethical and Deontological Concerns varies depending on the area, but all of them are based on an agreed common code. Because of the variation of areas in our team we believe that the ethical behaviour and deontological concern should be inherited in each field. [(ICC)] [(NSPE)]

The profession of an engineer is particularly important, given that it is generally accepted that, as long as this profession is concerned, there is a work that has a direct and positive impact on the quality of life of all human beings. By analogy, the services offered by the engineers require honesty, objectivity, fairness, and impartiality and must be effective in the protection of public health, security and advertising. When practising their profession, engineers must follow a professional attitude that has the highest ethical standards of behaviour towards the public, customers, employers, and the profession of engineering itself.

Every country has its own organization which describes ethical guidelines for engineers. The society of NSPE, National Society of Professional Engineers, has a list of rules which is the perfect example of what an engineer should apply to his moral code.

I. Fundamental Canons

II. Rules of Practice

III. Professional Obligations

The team decided to support and work between the lines of the NSPE code of ethics. [(ICC)] [(NSPE)]

Our team decided to support and work within the guidelines of the ICC/ESOMAR International Code on Market and Social Research, the Code is based on 8 key fundamentals. The team have decided to behave ethically and shall do anything that might damage our market reputation. Our biggest priority is the consumers and as a result, we shall not do anything which might damage our reputation such as misleading, information about the general purpose and nature of the project. We will conform to all relevant national and international laws and we will ensure that the project is designed, carried out, reported and documented accurately, transparently and objectively. [(ICC)] [(NSPE)]

The more aspects of the ecological crisis are perceived and felt, the more pressing is the task of re-aligning our moral values and visions towards directions for taking into account and integrating the nonhuman beings of our planet as well as the corporations. Global ecological problems require us to establish such moral relationships that until now have not studied in a structured way. The environmental impasse in which today' s societies have been driven, as well as the increasing awareness of the acute environmental problem facing the whole of mankind, fatally affect our quality of life and lead to a redefinition of the relationship between today' s man and his natural environment, the need for new moral values. And this is what we are trying to accomplish with our project, Vertical farming. Our goal is to figure out the most effective way not only to have a smaller impact on the environment by the means of sustainability and efficiency but also healthier, insecticide-free products and the opportunity of a greener way of life for our consumers. [(ICC)] [(NSPE)]

Our first concern revolves around testing that the product works properly and making sure that all of the materials that were used are from certified suppliers. We need to make sure that the application is fully factual and the instructions on how to use it are concluded, before putting our product available on the market. The European Union's requirements of Machinery Legislation must also be applied:

• Machine Directive (2006/42/CE 2006-05-17); [(MACHINE)]
• Electromagnetic Compatibility Directive (2004/108/EC 2004 12 15); [(EMC)]
• Low Voltage Directive (2014/35/EU 2016-04-20); [(LVD)]
• Radio Equipment Directive (2014/53/EU 2014-04-16); [(RED)]
• Restriction of Hazardous Substances (ROHS) in Electrical and Electronic Equipment Directive (2002/95/EC 2003-01-27); [(ROHS)]

To conclude the ethical and deontological analysis, the team has decided to be honest, objective, fair and impartial throughout the life of the project and always try to find the best solutions especially regarding the environmental ethics. Because we believe that through our project on vertical farming we entering a field with great opportunities to change today's agriculture impact on the environment and provide a more greener and sustainable way of life.

In this paragraph, we show basics of our Aeroponics system. There is an overview of the proposed design, components, functionalities, electronic schematic, testing and final results. Once the tests are carried out on the prototype, final conclusions will be drawn and scheme for further development may be proposed. The specifications of indoor Aeroponics system are:

• Energy efficient
• Modular
• User-friendly
• Wi-Fi compatible
• Appealing design
• Cost effective

During a brainstorming session dedicated to gathering innovative solutions to stand out of the market of vertical farming, the team has chosen the functionalities that they found mandatory for the project. Water level sensor for monitoring the remaining supply of water in the reservoir, humidity sensor to keep track of plants' conditions, and ambient light sensor to increase sustainability. After that, the first drafts were made as shown in Figure 34, which shows our initial concept and the black box diagram.

The principles of operation as depicted in the previous section, albeit very likely valid for a commercial scale development prototype of the device, proved not to be compatible with our limited budget - for instance, having multiple solenoids valves depletes our money allocation almost instantly, with them being sold for an average of 10 € a piece. Not so complex and possibly slightly less functional solution - in the industry sometimes referred to as Minimum Viable Product - had to be assumed as a proof of concept, one that possibly could convince a sponsor or the crowdfunding community that the general idea is valid and the project should be expanded further based on this initial iteration.

The electrical schematics for such an MVP prototype is given in Figure 35, with a short legend of the colour-code applied to hard-wired connections summarised in Table 18.

The final array of control-system functionalities contains, among others, modulating the intensity of work of both the water pump and the light-providing LED strips -including deactivation of the in-built lamps in the presence of high-intensity ambient light, control over the water level in the reservoir tank, and simple feedback mechanism with an RGB LED diode available for machine-to-user communication, e.g. in case of power or communication failures.

Just like the financial aspect addressed further down this section of the Report, our resources - like electrical power - are limited. There is only limited amount of energy delivered to the device that the components installed can utilize. Table 19 presents the power budget for the Minimum Viable Product prototype.

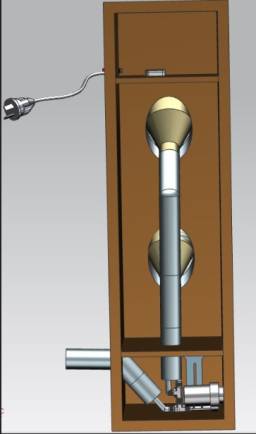

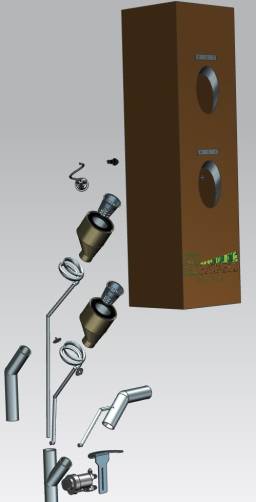

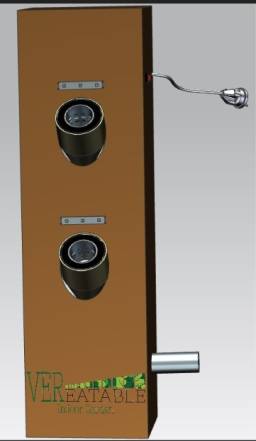

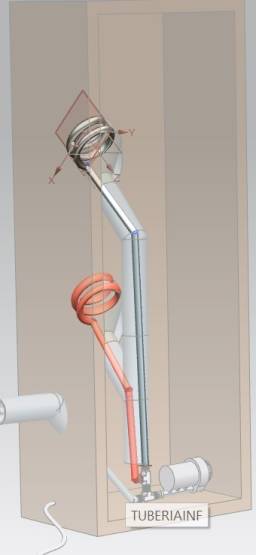

After basic drafting, the Team came up with an idea and drew a 3D model. We used NX for 3D modeling, it also includes real size components, shown as accurate as possible. Pictures below show the model from outside and also provide a detailed view from the model inside.

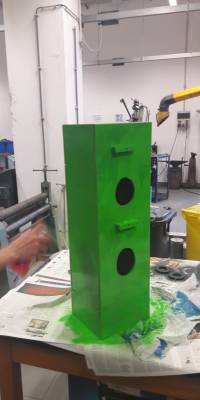

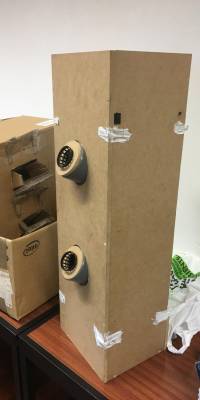

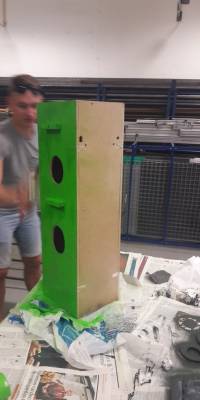

For the prototype of the product to be actually developed, tested and presented in nature, a whole array of components had to be researched, compared, selected, and ordered. With the budget on these spendings being strictly limited, the team had to balance find the best possible balance between cost efficiency, quality of operation, and spectrum of functionalities offered by the prototype. The detailed thought process behind each decision made in this process will not be presented in this report, yet some key highlights may be listed:

• The microcontroller serves as the computational brain and heart of the device. While most of the available devices of this type cover the basic requirements for such an element in the Vereatable project - namely the ability to read sensor inputs and control the work of connected motors and lights - more distinctive features like out-of-the-box Wi-Fi connectivity are harder to come across. Widely known, popular, and tested family of Arduino devices was the first to be scrutinized, yet no affordable device has been found, with the Arduino Uno Wi-Fi model being priced at almost 42 €, more than a third of the team's appointed budget. While less expensive variants may be expanded with additional Wi-Fi modules, a device from the ESP8266 family has been selected instead, coming in with higher computational power, included Wi-Fi capabilities, all at a lower price yet with a drawback - Arduino being the dominant to-go solution, many tutorials, example implementations and software libraries available on the Internet are unlikely to cover and/or support the niche counterpart the team selected.
• The water pump necessary to provide regular hydration to the plants inhabiting the device has been chosen primarily based on the voltage required for powering it up. Unit operating at the “raw” network voltage of 230 V would require either a separate voltage source for the low-voltage powered components (e.g. the microcontroller working at no more than 10 V) or a relatively powerful transformer to be embedded to step-down the network supply. Luckily, the team was able to find a small pump model designed having a similar use case in mind - one powered by 12 V voltage.

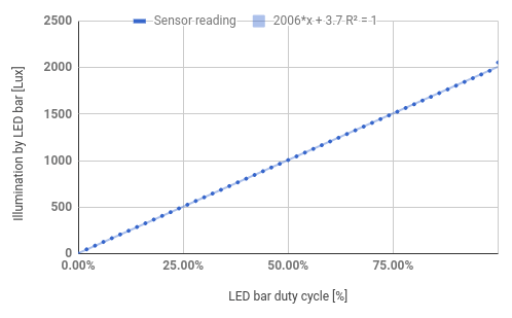

• LED illuminators in the form of the self-contained units were chosen over an LED strip solution as the latter are usually sold in packs of a couple of meters - way more than required for our application. Moreover, the LED bars selected include security measures such as current limiting resistors, decreasing the need for such parts and the overall complexity of the device.
• Water level sensor. One of the cheapest, analogue solution has been selected in order to decrease the share of electronic elements in the budget as a whole. While more precise, digital sensors were available, combining them being a few times more expensive than the analogue piece and the primary use case being detecting just the critical lack of water in the reservoir, the basic unit has been trusted to be sufficient.
• Luminosity sensor of digital nature has been selected simply because the analogue water level sensor would have been occupying the only analogue input pin on the selected microcontroller. Moreover, precise readings of ambient light should prove more useful than water level control with the same precision.
• Structural components have been selected only after the electronic components list has been finalised and optimised. The reason for that was simple - while some electronic parts simply prooved irreplaceable, more freedom and creativity could have been applied to the selection of structural pieces at a limited budget. It was also more likely to obtain and/or salvage basic parts and materials outside of the budget, e.g. through use of leftover materials from the university's workshop.

The Table 20 below provides the full list of the elements selected for purchase for sake of the prototype's assembly.

The user of the product is able to grow different plants sought-after, due to controlling everything with an Android application the product is very user-friendly. Just insert the water, nutrition, plug it into the circuit and after that choose the plant from the Android application and enjoy. Thanks to the sensors and application you get notifications when product needs attention. This way, you will be able to cater to your plants and give them the attention they need when they need it. The notifications may include:

• Water supply is getting low
• Plant is ready to be harvested
• etc…

The overall complex control over the behaviour of the device by intended design has been splitter into three tightly cooperating but independently operating segments

1. the microcontroller embedded in the chassis of the device, maintaining low-level control over the pieces of the machine;
2. the remote server based web service, serving as a central hub, main computational unit, and data storage;
3. the mobile application providing a user-friendly way to interact with the elements above.

On the level of the physical device, decision-making process ought to be kept simple, having in mind many limitations to be respected while working with Arduino-like microcontrollers. A small amount of RAM and even smaller reserves of persistent memory, single CPU thread, low clock frequency are all factors limiting the workload which can be comfortably handled by a microcontroller. A rule of thumb is therefore to cut the actions taken by a controller to the bare minimum of reading and writing into the appropriate pins.

In case of the developed prototype, once the device is powered up, the setup phase begins, as shown in Figure 42. First, all of the components connected to the CPU are initialised and prepared for operation. Should that process fail at any point, it shall be indicated through the RGB diode on the front panel of the device and then repeated. If the fault proves to be persistent, the device will eventually shut down as manual service might be necessary for proper operation.

Next step is obtaining the access to the Internet. Though limited, internal memory of the ESP-type microcontroller is sufficient for storing Wi-Fi credentials. If a network already used in the past is detected, the device will approach it automatically. This will, however, often not be the case for one of many reasons - brand new installation, relocation, upgrade to the wireless network setup. In such a case the device will prompt the user via RGB LED for help in the selection of a new network to connect to. A hotspot will be generated explicitly named after the device, upon connecting to which the user will be redirected to a web terminal showing all of the networks detected by the device. Selecting one of them and providing the password if necessary will make the microcontroller connect to that access point, store the authentication details and carry on with the booting sequence.

After booting up the components and connecting to the Internet, the next step is to establish a check-in with the remote web server. A simple ping-like GET request is issued toward it. An acknowledgement is expected in return with a status code “OK”. A lack of such confirmation or one carrying any other status code will be interpreted as an error in establishing the connection and the ping will shortly be repeated. Again, should the error remain persistent, the device will eventually shut down.

If no errors have been encountered above, the device moves into a persistent operation phase. At a predefined interval - in our case 60 seconds appeared to be a safe middle ground between resolution and lightweight of operation -, the device takes measurements from the sensors connected and sends them to the web server via a POST request. These are processed on the server-side, what will be explained in more details in the next section. In the end, however, the server responds to the device sending over control parameters to be applied to the device's elements - LED plant illuminators and the water pump. While the state of the former does not alter until being overwritten with another set of control parameters, the latter is being turned on for the amount of time requested by the server - relatively just a fraction of the interval at which the device obtains commands from the server - and then automatically brought back to idle up until a pump run is requested once again.

Once the control attributes are applied across the device, it goes idle, waiting for the communication window interval to pass, when all of the procedure that began with the sensor reading is repeated. Should the communication with the server fail at any particular cycle, the user will be informed through the means of the feedback RGB diode - but unlike the setup phase, restart of the device will not be forced in hope of successful communication in the next interval.

The web server appointed to the project has been created in an environment fully suitable for large-scale, professional application. As such, its booting sequence is complex and full of fallback mechanisms, and its continuous operation is prepared for various events out of the scope of our project's application. That being the case, the server-side logic in Figure 43 is presented assuming reception of the signal sent out from the device as the entry point.

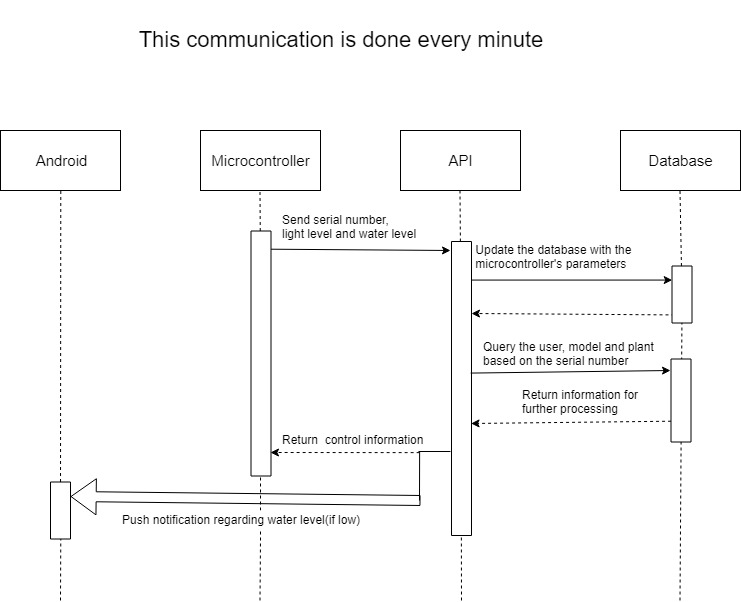

Once the transmission is received, the incoming sensor readings are written down to the database. At the same time, user preferences and the factual details about the plants they grow are loaded. Based on the all the above data, the server then appoints the most appropriate settings to apply to the device in the next operation cycle (i.e. until the next batch of sensor readings are delivered and the state of the device recalculated. Taken into account are the optimal growing conditions for the plants inhabiting the device which were stored in the database in advance, user-customized preferences like time-shift of the lights-up period of the day and the current natural illumination of the device in comparison to the demand.

A data package with the control parameters is prepared for the device as a response to its POST request to the server. In addition, the water level sensor reading is tested against the critical level at which a refill should be done by the user. Should the reserve be to low, the user is to be notified about it through the means of the mobile application accompanying the product.

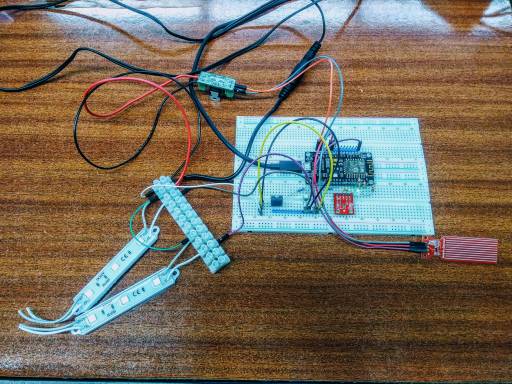

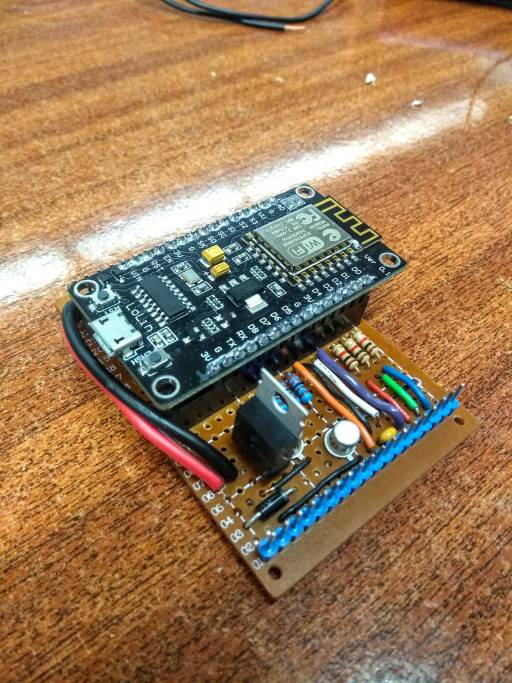

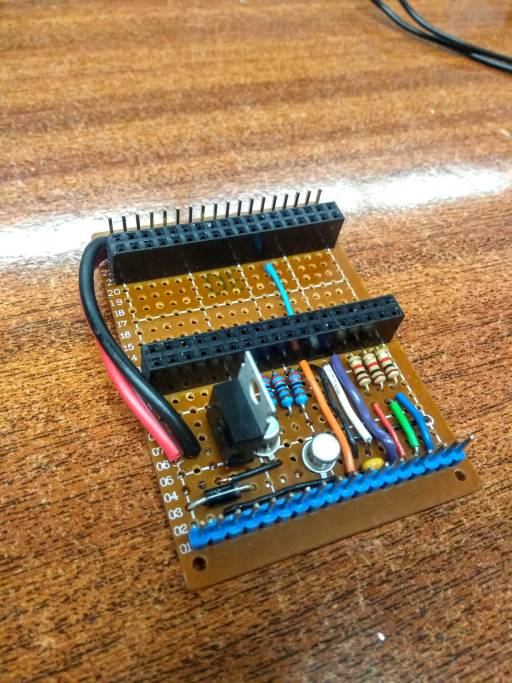

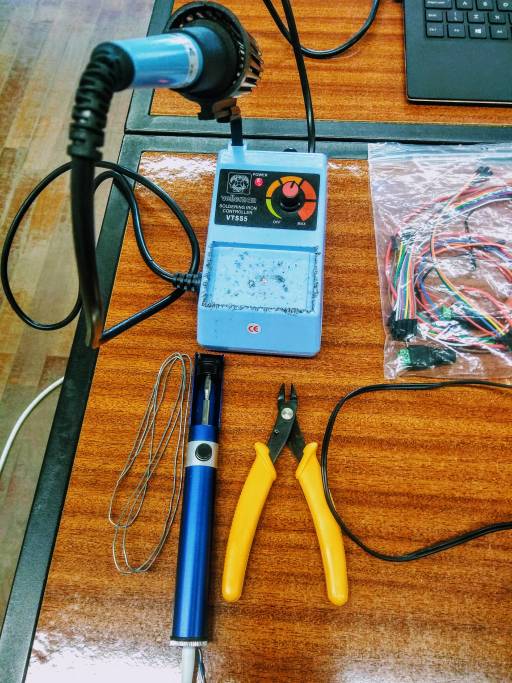

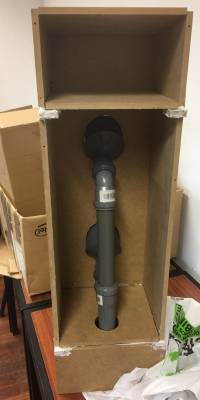

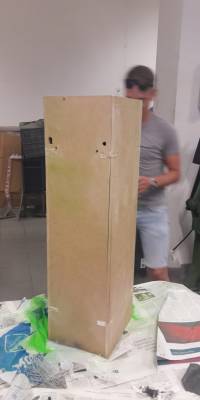

The assembly of the electronic “neural system” began with a temporary connection of the related components on a breadboard base, as depicted in Figure 48. This type of interconnection serves poorly on a long run as it tends to be fragile, clunky and partially unreliable, yet prooves well suited for testing and rapid prototyping. The jumper connections are by intent temporary, allowing for quick changes to the circuit to be made and to work on a trial and error basis.

At this stage of assembly, all of the components ordered have been tested in terms of their principle operation. No malfunctions have been detected. Next, compatibility of various elements with their intended use via the microcontroller has been evaluated. As it turned out, some combinations of device-pin connections caused unpredictable behaviour i.e. wiring any of the RGB LED's legs to the Digital Pin no. 4 of the microcontroller resulted in an infinite loop of device rebooting.

Another unpredicted outcome was the fact that the water pump did not respond to the PWD control as expected - in fact, only full 100 % duty cycle resulted in the motor's activation. Any setting below that did not activate the component at all. While coming with a surprise, this flaw would prove not to be critical, as the pump's chassis came with a mechanical limiter of the water flow that allows limiting the pressure if necessary - although only through manual intervention inside the prototype device, instead of initially assumed remote control via the Web Service.

More vital issue discovered was a dramatically loose and faulty connection between power supply's male 2.1 mm DC power jack and the female counterpart ordered. As a result, current flow on this joint happened only when an additional sideways pressure has been applied to the elements, rendering the whole plug connection virtually pointless. A solution for the issue came from the fact that the water pump's cable used the same kind of connector, one that connected more stable with the power supply. As the cable had to be taken apart regardless of this situation to be connected with the microcontroller, the remaining female plug has been salvaged and reused for use of the device as a whole.

Once all the components have been tried out and necessary fixes to the design applied, the electronic parts were to be assembled in a more reliable and permanent manner through soldering on a protoboard. All of the connections necessary were possible to fit on a single board of 22 by 26 pins. Using soldering tools shown in Figure 49 provided by the University's laboratory, electrical connection paths have been executed. With the help of Kiotto's Digital multimeter depicted in Figure 50 these paths have been continually tested for conductivity, to omit any cases of cold solder joints and/or unintentional short circuits.

As a final result, a heavily case-specific socket station for the ESP microcontroller has been assembled, wiring it to the power source, all of the sensors, and all the transistors taking the role of power relays for elements under control. This socket has been presented standalone in Figure 51 and with the microcontroller unit installed in Figure 52.

This module comes with an Android application that controls and monitors the module. However, in addition to the Android application, there is a server with a REST API that is responsible for the security of the application and mapping the correct user with the correct device. Every module is connected to the server via Wi-Fi connector, which is why the customer can get notifications on his android application regardless of the distance that he/she is with the module.

Example of this would be, the customer is at work and his/her module decides that it is time to harvest the plant. The module will inform the server, which sends the push notification to the Android application of the customer that is in possession of that specific module.

All users and modules are stored in a database that is only accessible through the server. As seen in Figure 53, the software programs and environments used to develop our prototype are:

• SP.NET WEB API 2 for the API
• IIS for the server configuration. The OS is Windows Server 2008 R2
• Firebase for the database
• Android Studio for the android application
• Arduino for the IoT

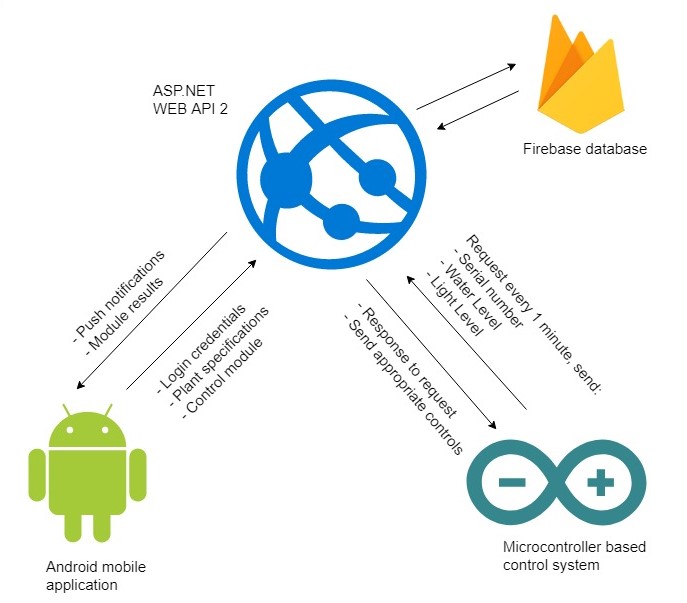

As we see in Figure 54, The control system sends a request to the server with the readings from the sensors such as water level, light level and the serial number of the device every minute and then waits for a response from the server. The server then puts the readings to the database and reads the specification of the user that has that specific serial number. Then, the server sends out the control signal to the device as a response to that request. The control signal gives the device instruction about what to do the next minute. If the server realizes that the water level of the device is low, a push notification is sent to the Android device where the appropriate user is logged in. This notification informs the user about the current state of the water.

Furthermore, the team prepared a scenario for the use cases that the product will offer in terms of android application and user experience with our product. Figure 55 shows the use cases.

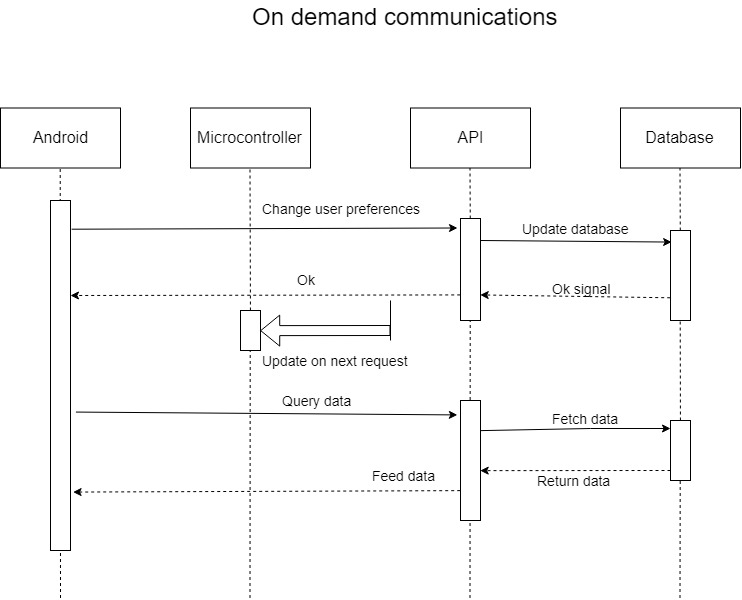

The user has several options for using the Android application. Firstly, the user must log in to the system or register if the user has just bought our product. After successfully logging into our system, the user can add a new plant if there is a free plant socket. Additionally, the user can monitor the existing plant sockets so that he/she knows if the climate is desirable and he/she can put some changes to it if needed. There is another actor to the system which is the Administrator, whose only action is adding new plants to the system with specifications about how to grow them and also updating the specifications of the current plants.

Figure 56 shows how the Android interacts with the device after logging in.

For safety reasons, the server contains a scheduler that runs every 5 minutes regarding other types of push notifications to the Android device:

• No signal received for the last 5 minutes, which prompts the user to check the internet connection of the device
• Plant is ready for harvesting, using the scheduler already running, plants in the device are checked for availability and proper notifications may be scheduled for the user. This functionality could be extracted to a less frequently executed code, e.g. running once/twice a day.

Figure 57 shows how the safety scheduler works in the system.

The design of the mobile application was made for adult and children. So it is really simple and natural to use. The technical implementation of the app should involve native development for both of the major smartphone operating systems used worldwide - a Java/Kotlin based application for the Android environment and a C/Swift based counterpart of iOS. Albeit popularity of mixed/hybrid apps is nowadays increasing, the team believes that native development allows the deeper use of each platform's possibilities and results in clearer, easier to understand and use interface taking into account different standards and trends known by the users of both of the systems.

1. Load page: when you had clicked on the application.
2. Homepage: It will give all the most important information. The water level and your next harvest, the bell in the right corner will repeat this information more clearly. The parameters button is on the left corner, for example, to add a model to your indoor garden.
3. Home > My Garden: is a resume of your real garden. It shows explicitly how your garden is built and what kind of plants you have inside. As you can see, module 2 & 3 are empty, the hand with a plant inside will lead you to the Research page (5). If you click on one module you will arrive on the next page (4)
4. Home > My Garden > Module 2: It resumes the plant you have inside your actual module 1, the date you plant them and an approximative date it will be ready to harvest.
5. Home > Research: It is the database of our application you can find every plant you need and you want to grow. If the plant is not inside yet, you can add it by yourself with your own bits of knowledge, it can help​ others users.
6. If you click on the plant you chose, a drop down page box with health and benefits​ information about this plant. Then some requirements to grow. To plant it just click on the hand in the left corner of this box and chose the room.
7. Home > My Profil: We want or application almost like a forum between VEReatable farmers. With your profile​ you are able to send messages to other, share your experiences. On this page will be registered your age, city, experiences of growing, pseudo, picture(s) of your plants, years of experience on the app etc.

The project has had a lot of steps starting from brainstorming our idea as a team. Once we had an innovative idea, we started to research it thoroughly, searching for information and modifying our idea during the development of the project. At one point in the project, we had an idea about changing the type of watering system instead of hydroponics, we incorporated aeroponics, so we had to redesign and redevelop some of the points in the schematics and 3D design. We also had to deal with the limited budget and due to this, we had to redesign our schematics and 3D design even more. There were some problems assembling the mechanical parts and also some electrical parts malfunctioned and we needed to change them. Additionally, we had some problems with configuring the server since it was using an old version of a software but we managed to configure it and to make a communication between the server and all the clients. Finally, the result has been much better than the initial idea and we will develop it even more in the future.

With this report, Team SAMARA developed a product which achieved the requirements that were set, as can be seen in Section 1.5 Requirements.

Several topics were raised during the development of this project. This allowed the team to discover areas and understand their importance. Based on the research done by the team on the topic of State of the Art helped us to understand the subject and to learn about what already exists on the market and decide to create a product that will have a high market value and will be a strong competitor in the market and contribute highly to the future of vertical farming. Project management was necessary to carry out a project with constraints such as budget and deadlines. Thanks to this analysis, the team was able to build a project on a good basis. Even when there were some unforeseen circumstances and delays regarding the materials cost the team managed to push through the obstacles and deliver the product with very high quality.

In the marketing chapter, the Team developed the image of the product, the logos and commercial names. The team chose to use environmentally friendly materials, and produce a re-usable indoor vertical farming. It was very important for the team to make a product that is respectful to the environment not only during the manufacture but during its life course. With Vereatable, the indoor garden we provide an eco-friendly solution and a greener way of life. After the ethical and deontological analysis, the team has decided to be honest, objective, fair and impartial throughout the life of the project and always try to find the best solutions especially regarding the environmental ethics. Because we believe that through our project on vertical farming we are entering a field with great opportunities to change today' s agriculture impact on the environment.

After research, the Team started developing the product, did some basic drafting and came up with an idea and drew a 3D model. For the prototype of the product to be actually developed, tested and presented in nature, a whole array of components had to be researched, compared, selected, and ordered. With the budget on these spendings being strictly limited, the team had to balance find the best possible balance between cost efficiency, quality of operation, and spectrum of functionalities offered by the prototype. The Team designed a prototype and a control system, built and assembled the electrical components, developed the software and eventually finished the prototype.

At the beginning of this semester, we faced the problem of building a solid team between different cultural people from different countries and most important with different level of English as a method of communication. There were a lot of ups and downs during our time working together but we decided to see this experience as a lesson. In our future as engineers we will be faced with similar situations and the solution the team has found to work through it, to be solid and to support each other in our weaknesses, will become a useful skill. We divided each task depending on our knowledge and our strengths. During the project, we had to trust our teammates and help each other when it was needed. The positive thing about this experience is we learned a lot about each members fields, about how to work with strangers and most importantly about ourselves.

Each member had a personal opinion about EPS:

Anastasia Sevastiadou :“I deeply believe that living abroad and participating in EPS was a crucial step in my life. Not only did it bring knowledge in various academic disciplines, but it also gave me the opportunity to work with people from different countries and different cultural backgrounds, to improve my English and learn some Portuguese. EPS taught me a lot about teamwork and how important communication skills are in a group project. The prospect of personal development is one more reason among the numerous others that made me participate in EPS, in that case, I conceder this experience very profitable.”

Andres Luts: “EPS was an amazing experience for me since I was working with people from different fields of study. This greatly improved my research abilities and I also improved my abilities in my field of work. Additionally, living in a new country in an international environment was something new for me and I learned a good deal of life skills.”

Audrey Pretot: “EPS was for me the most impactive experience of my short life. As French people without a really good English, I felt my language improving all semester long. With some difficulties at the beginning of the semester but thank for goods teammates, patience and motivation I realized that I could overcome all difficulties. I learned a lot about project management, the teamwork, of course, marketing, other fields which weren’t mine and communication obviously. But I think that the most beautiful thing in EPS is learning about yourself, change your point of view about your own personality, become a little bit more mature and objective, improving yourself. Knowing your character even more in each difficult situation I needed to face at work with really different teammates from a different culture and in everyday life in a foreign country (a beautiful one) was really amazing. Even if sometimes this semester was frustrating thank you to my teachers, thank you to my classmates and especially thank you to my teammates.”

Mile Trendafiloski: “EPS was a wonderful experience for me, having to work with people of different nationalities and different backgrounds. I learned a lot about teamwork, consistency in work, product development and I greatly improved my current field of knowledge. To add more, I believe that EPS did not only help me with my academic and practical knowledge, but I acquired some assets that can be useful in my life and made new friends that hopefully will last throughout my lifetime.”

Rodrigo Basurto: “I have never worked like this before, I mean with engineers in the different field as me, so that made possible to know and learn from them new things. Build a real project with its real issues that only appear in the real life made that project a real challenge to me. I really liked the semester and it has been profitable academically and also for growing as a person.”

Szymon Błaszczyk:“Through participation in the EPS programme, I have shone a new light on the set of my skills and assets. Having a bit of a control-freak attitude towards the projects I get involved with, and having jack-of-all-trades interests, I usually try to pitch into every single aspect of the work done, be it for better or for worse. Faced with the mere size of this EPS assignment, throughout the semester I have learned how important it is to simply put trust in my teammates' qualifications and the quality of their work. The multicultural environment itself wasn't something new to me, as I have been active in a Europe-wide student organization in the past years. As far as the technical side of the project considered, I got to work with some new technologies that never before got my interest, but in the end proved to be interesting and may get more of my focus in my future work.”

This European Project Semester was a good opportunity to work in a multidisciplinary group of students. They all learned a lot from each other's different fields and cultures. The Team wants to thank all the supervisors and teachers for all their help and support.

Working within the time and budget constraints of the EPS meant that the product is never completely finished. Improvements can always be made. In the case of Vereatable, indoor garden further improvement in the sustainability factor of the product can always be made.One of our ideas is to add a water quality control system so we can test samples and their conditions to eliminate toxic chemicals, and adjust nutritions before they enter our device. Because water source quality is of the highest importance to aeroponic and generally hydroponic systems.

A step in the project would also be to Upgrade the electronics used for the device to a set that could handle more calculations, inputs, and outputs. Enable the device to operate in the default mode at times when the connection with the server would be lost, not to put the plants at risk due to external factors Also, to slim down the mechanical design so that the device occupies less space. Use custom-made parts instead of standard pieces from hardware stores.To implement true modularity solutions we wanr tocreate multiple, more advanced prototypes that can work and interact with each other.

And regarding the software development we want to finish the Android App and do an iOS App,to have real-time data for the sensors and also an App section with farming tips and developing an iOS application.

The research and development done by team 1, team SAMARA, of the EPS@ISEP, provides a good base to work on new sustainable products regarding vertical farms. For example a sustainable autonomous indoor vertical garden, or even for industrial purposes. The team hopes to inspire new ideas to other people with our work because we believe that through our project on vertical farming we entered a field with great opportunities to change today' s agriculture impact on the environment and provide a more greener and sustainable way of life.
